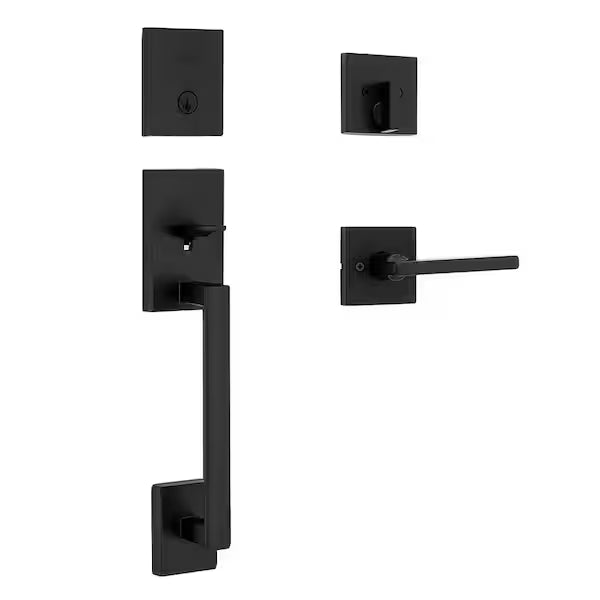

San Clemente Matte Black Single Cylinder Low Profile Door Handleset with Halifax Handle Featuring SmartKey Security
$165.00
About This Product
Step up to designer styles and superior security with Kwikset Signature Series products. The San Clemente handleset has a sleek, modern look. With clean lines and a variety of finishes, you can easily upgrade the entry to your home. San Clemente also features an adjustable screw that allows for easy door mounting and a guaranteed fit. The latch bolt is operated by the thumb piece on the outside and the grip on the inside. The deadbolt is operated by a key on the outside and a thumb turn on the inside. The rich tones of Matte Black add the finishing touch to this product. The Matte Black finish provides a rich and warm complement to the product's style.
Highlights
- Handleset with deadbolt: use on exterior front doors with two bore holes, comes with interior lever and locking deadbolt turn piece, key operated from outside
- Smartkey Security: Kwikset's SmartKey Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- Easy install: do it yourself, installs in minutes with just a screwdriver, all the hardware you need is included for a hassle-free installation, detailed directions provided
- Fits standard doors: fits standard size doors 1-3/8 in. to 1-3/4 in. thick, latch backset adjusts to either 2-3/8 in. or 2-3/4 in. by sliding the adjustment pin during installation
- Adjustable Latch: With just a twist during installation, the latch backset can be adjusted to either 2-3/8 in. or 2-3/4 in. in order to fit all standard door preparations
- Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, limits apply, see Kwikset warranty for more details
- WARRANTY PROTECTION: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details
- Click here to shop all Kwikset products
- Return Policy
Dimensions
|
Assembled Depth (in.) |
2.63 in |
|---|---|
|
Assembled Height (in.) |
17.91 in |
|
Assembled Width (in.) |
2.75 in |
|
Backset Size (in.) |
Adjustable |
|
Deadbolt Bore Hole Diameter (in.) |
1 in |
|
Deadbolt Cross Bore Diameter (in.) |
2.125 in |
|
Deadbolt Strike Height (in.) |
2.75 in |
|
Deadbolt Strike Width (in.) |
1.125 in |
|
Deadbolt Throw Length (in.) |
1 in |
|
Deadbolt Trim Ring Diameter (in.) |
2.625 in |
|
Handle grip length (in.) |
4.47 |
|
Inside top plate length (in.) |
2.59 |
|
Inside top plate width (in.) |
2.75 |
|
Knob/lever bore hole diameter (in.) |
1 |
|
Knob/lever cross bore diameter (in.) |
2.125 |
|
Knob/lever housing height (in.) |
2.625 |
|
Knob/lever housing width (in.) |
2.625 |
|
Knob/lever strike height (in.) |
2.25 |
|
Knob/lever strike width (in.) |
1.75 |
|
Knob/lever throw length (in.) |
.5 |
|
Lever Grip Length (in.) |
4.47 in |
|
Maximum Door Thickness (in.) |
1.75 in |
|
Minimum Door Thickness (in.) |
1.75 in |
|
Outside bottom handle plate length (in.) |
2.63 |
|
Outside bottom handle plate width (in.) |
2.75 |
|
Outside key plate length (in.) |
2.63 |
|
Outside key plate width (in.) |
2.75 |
|
Outside top handle plate length (in.) |
2.66 |
|
Outside top handle plate width (in.) |
2.75 |
|
Projection (in.) |
2.63 in |
Details
|
Backplate Shape |
Square Backplate |
|---|---|
|
Commercial/Residential |
Residential |
|
Deadbolt strike |
Round corner |
|
Deadbolt Type |
Single Cylinder Deadbolt |
|
Door Handing |
Universal |
|
Door Lock Style |
Modern |
|
Door Locks & Knobs Product Type |
Keyed Handlesets |
|
Door Type |
Keyed Entry |
|
Electronic/Mechanical |
Mechanical |
|
Features |
Adjustable Backset, Easy Installation, Kwikset SmartKey |
|
Finish |
Matte Black |
|
Handleset Product Type |
2 Piece Front & Back |
|
Hardware Color Family |
Black |
|
Hardware Finish Family |
Matte |
|

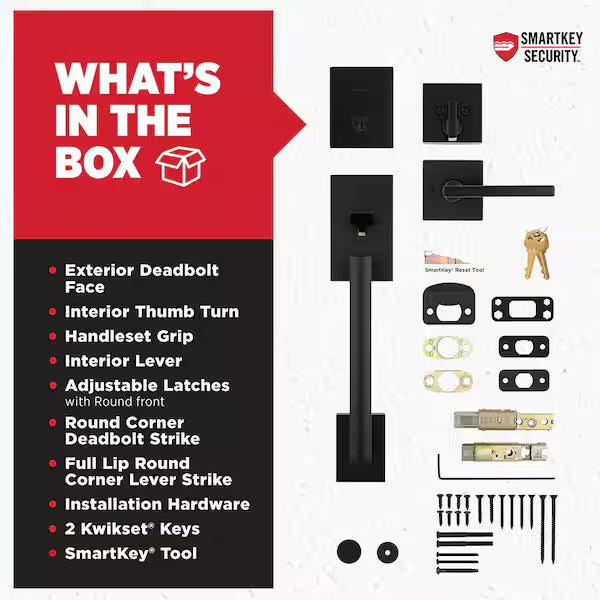

Included |
Hardware, Installation Instructions |
|
Keying Type |
Keyed Different |
|
Keyway |
KW1 |
|
Knob/lever strike |
Round corner |
|
Lever style |
Straight |
|
Lock Type |
Keyed |
|
Material |
Metal |
|
Product Weight (lb.) |
6.55 lb |
|
Returnable |
90-Day |
|
Security/ANSI Grade |
ANSI Grade 1 (Best) |
|
Total Number of Keys Included |
2 |
